With its reliable engine, comfortable geometry and affordable price, Kawasaki’s KLX250 series is one of the best and most affordable 250cc options around. Never leaving well enough alone, we set out to “ADVMotize” this already great bike into something with higher performance. In the process, we also made it more comfortable and usable to a wider range of riders and purposes. A KLX you could take to the store, on dirt trails, or around the world…and not have to be over six feet tall to ride.

GEOMETRY AND COMFORT

If you followed our ADVersys project, you may already be familiar with how we love to play with wheels. One of the scariest problems for many riders is a bike that’s too tall for off-roading. Balancing several hundred pounds of hot steel on tiptoes is tough enough on pavement, let alone on loose, uneven surfaces. And, dirt exacerbates this problem, especially for beginning adventure riders. To help solve this, we started with a stock KLX250SF, the motard version, with the benefits of a 1" shorter, but stiffer suspension, 9" of suspension travel, a friendlier seat height floor, and an upgraded 300mm front rotor— good for stopping with the added weight of luggage.

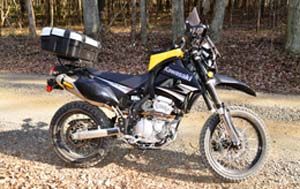

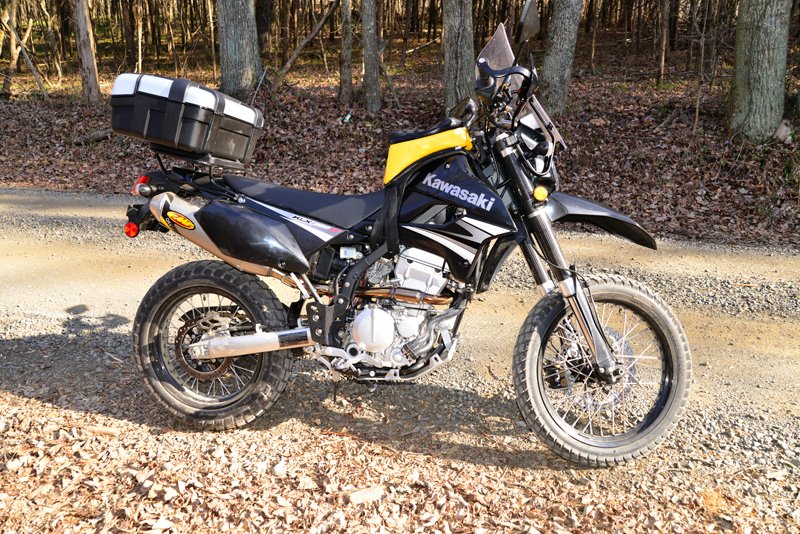

The KLX250SF after stage one. Now much more dirt capable.

To keep things simple, we kept the 17" rear wheel, but performed a front 2" front upgrade from the wheel maestros at Woody’s Wheel Works, giving the bike a 17/19-inch combo. After testing by several riders of various sizes, backgrounds and skill levels, we ultimately ended up loving the ability to flat foot the bike while still having enough ground clearance for trail riding. Woody’s built the wheel with a Rad Manufacturing billet hub, heavy-duty spokes, and a black Excel Takasago rim, making it strong enough for bikes twice the KLX’s weight. The wide 2.5" rim width mounted with Vee Rubber’s dual-sport 163s, results in a nicely predictable ride on the street, perfectly capable of soaking up the bumps on gravel and trail.

The front 17" motard rim was a bit crazy when mated to the oversize 300mm rotor (only on the SF), but the 19" mod tamed the brake’s performance to a friendlier level, while lifting the front end a bit—all adding up to an overall more comfortable ride. If you’re going for more dirt-oriented feel, it may be worth putting a 2.15" wide rear, and a 19" rim on the front, which runs a bit narrower and may give you a lighter wheel with quicker steering.

Not being a large bike means that many of the dimensions are rather small, this includes the location of the mirrors, which hinders the ability to see what’s going on behind you. Although many dirt riders often remove their mirrors altogether, those looking to get daily use, especially in traffic or on highways, will appreciate SW-Motech’s beautifully finished mirror extenders.

PERFORMANCE

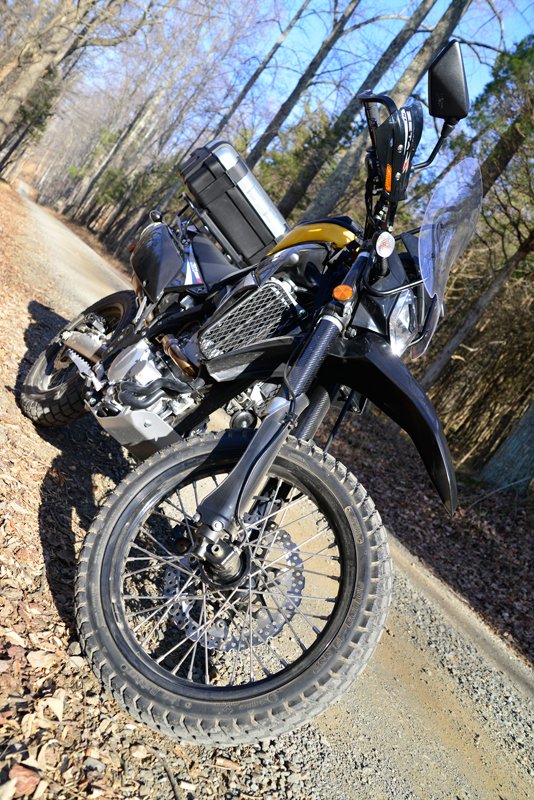

Woody's Wheelwork 19" front wheel is bulletproof on this 250.Perhaps the biggest complaint about the KLX250 is its severely restricted performance settings from the EPA-compliant factor. Although this is a very common problem in small one-lungers, there are a few options available. After testing several of them, we went with the Dynojet KLX300 carb kit, which has a dramatically more progressive taper to the needle, delivering power much faster off the throttle… especially when mated to the 128 main jet.

Hot gas exiting the engine has fewer problems thanks to Flying Machine Factory’s (FMF) Q4 exhaust muffler and PowerBomb header. Both stainless pieces are beautifully crafted, and provide a wonderful exhaust note, while shaving several pounds off the bike. Although the rear passenger heel standoff had to be moved out about half an inch to make room for the fatter pipe, installation was easy, and the hardware is top notch.

We’re bound to use the extra power now on tap, so oil maintenance is even more important. Changing the oil under various conditions on long distance, especially international rides, will inevitably mean that oil filters won’t be available at some point. While paper filters are cheap and easy to come by in developed nations, having a washable stainless steel filter version pretty much solves the availability problem. The Moose stainless filter fits great, and provides piece of mind knowing this critical component can be reused no matter where you are.
