June 16, 2014 | Tobin Lampson | Bikes

Page 3 of 3: 230-3

Page 3 of 3

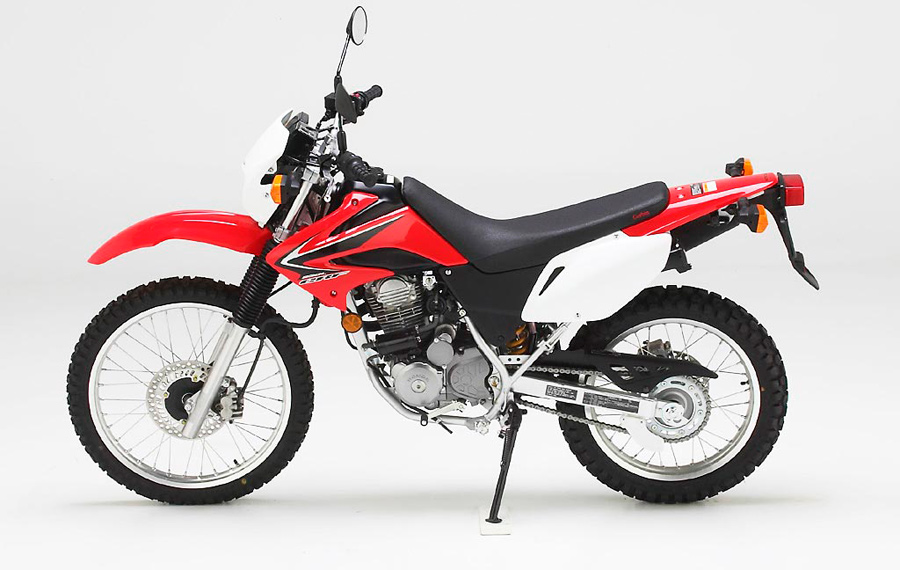

gallery8 Photo Credit: Corbin.com (bike shown with equipped Corbin seat)

ENGINE	223cc air-cooled single-cylinder four-stroke
BORE & STROKE	65.5mm x 66.2mm
COMPRESSION RATIO	9.0:1
VALVE TRAIN	SOHC; two-valve
INDUCTION	30mm CV carburetor
IGNITION	CD
TRANSMISSION	Six-speed
FINAL DRIVE	520 O-ring-sealed chain
FRONT SUSPENSION	37mm leading-axle Showa fork; 9.0 inches travel
REAR SUSPENSION	Pro-Link Showa single shock with spring preload adjustability; 6.3 inches travel
FRONT BRAKES	Single 240mm disc
REAR BRAKES	220mm disc
FRONT TIRE	2.75-21
REAR TIRE	120/80-18
WHEELBASE	52.75 inches
RAKE (CASTER ANGLE)	26.83"
TRAIL	103mm (4.0 inches)
SEAT HEIGHT	31.9 inches
GROUND CLEARANCE	9.5 inches
FUEL CAPACITY	2.3 gallons, including 0.7 gallon reserve
OVERAL WEIGHT	267 pounds
