2019 KTM 690 Enduro R

Ride from home and feel the adrenaline build while chasing asphalt curves toward your favorite offroad location. No trailer required, just twist the throttle of the all-new KTM 690 ENDURO R, which really comes into its own when the dirt begins and the trail gets more extreme. Its new chassis, revised styling and an updated version of the trusted 690 LC4 engine, are enhanced by upgraded electronics and new WP XPLOR suspension. Thanks to the hydraulically actuated PASC slipper clutch, the rear wheel always remains under control, even in heavy trail braking. A standard, highly advanced cornering ABS with an aggressive set-up and offroad mode must of course also be included. The innovative WP fork with separate damping make it especially easy to find the optimum set-up, since the compression and rebound adjustments do not interfere with each other. A great chassis, cool looks, a powerful engine and great ergonomics all round ensure that riding the KTM 690 ENDURO R feels just as great in urban traffic and on back roads as it does on gravel and offroad. Master more challenging terrain on this lightweight, high-performance king of versatility.

2019 KTM 690 ENDURO R HIGHLIGHTS

• NEW Dynamic LC4 single-cylinder engine with less vibration and more power featuring electronic fuel injection, Ride-by-Wire technology, dual balancer shafts, PASC slipper clutch and 6-speed gearbox.
• NEW styling based on the EXC family for a more aggressive look and enhanced ergonomics.
• NEW chassis for optimized rider feel and control with a lower seat (910 mm / 35.8 in) while keeping the same suspension travel.
• Fully-adjustable WP XPLOR suspension with separate damping circuits and 250 mm (9.8 in) of travel for the best offroad suspension on the market.
• Cylinder head with dual ignition featuring individual timing control for optimal combustion.
• Stainless steel exhaust with catalytic converter.
• Ultra-light chrome-molybdenum trellis frame.
• Self-supporting polymer rear fuel tank.
• High quality Brembo braking system combined with lightweight waved discs.
• Technology-leading Cornering ABS with Offroad mode (to disengage rear ABS) for hard braking under all circumstances and the Quickshifter+ for smooth clutchless shifting.
• Motorcycle traction control (MTC), motor slip regulation (MSR) and Street and Offroad ride modes that can be switched directly from the handlebars for controlled power delivery.

SPECIFICATIONS

Engine Type: Single Cylinder, 4-Stroke, SOHC
Displacement: 690 cc
Bore/Stroke: 105 / 80 mm
Starter: Electric; 12V 8.6Ah
Transmission: 6 Gears
Fuel System: Keihin EFI, 50 mm Throttle Body
Lubrication: Pressure Lubrication, Two Oil Pumps
Cooling: Liquid Cooling
Clutch: PASC Slipper Clutch, Hydraulically Operated
Ignition: Keihin EMS with Ride-By-Wire, Dual Ignition
Frame: Chrome-moly Steel Trellis
Subframe: Self-supporting Plastic Tank
Handlebar: Aluminum, Tapered, Ø 28/22 mm
Front Suspension: WP USD Ø 48 mm
Rear Suspension: WP Monoshock with Pro-Lever Linkage
Suspension Travel Front/Rear: 250 mm / 9.8 in; 250 mm / 9.8 in
Front/Rear Brakes: Disc Brake 300 mm / 240 mm
Front/Rear Wheels: 1.85 x 21”, 2.50 x 18”
Front/Rear Tires: 90/90-21”; 140/80-18”
Steering Head Angle: 27.7º
Wheelbase: 1,502 mm ± 15 mm / 59 ± 0.6 in
Ground Clearance: 270 mm / 10.6 in
Seat Height: 910 mm / 35.8 in
Tank Capacity: 13.5 l / 3.6 gal
Dry Weight, Approx: 146 kg / 321.9 lbs

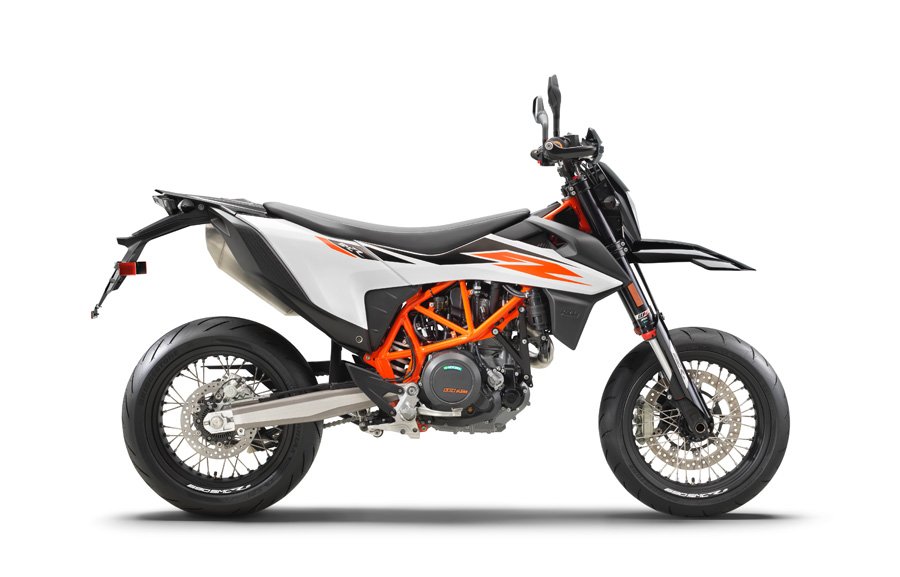

2019 KTM 690 SMC R

The KTM 690 SMC R raises the bar for street riders. The revised chassis and styling are boosted by the latest 690 LC4 engine and an updated electronics package that features cornering sensitive motorcycle traction control (MTC) with Sport and Street ride modes and the Quickshifter+ for smooth clutchless shifts, so whether you express your tarmac-sliding talent on mountain roads or on the track, you’ll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline. Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.

2019 KTM 690 SMC R HIGHLIGHTS

• NEW Dynamic LC4 single-cylinder engine with less vibration and more power featuring electronic fuel injection, Ride-by-Wire technology, a balancer shaft, PASC slipper clutch and 6-speed gearbox.
• NEW styling for a more aggressive look and enhanced ergonomics.
• NEW chassis with low seat (890 mm / 35 in) for optimized rider feel and control.
• Fully-adjustable WP APEX suspension with separate damping circuits for aggressive and confident handling on the street or track.
• Cylinder head with dual ignition featuring individual timing control for optimal combustion.
• Stainless steel exhaust with catalytic converter.
• Ultra-light chrome-molybdenum trellis frame.
• Self-supporting polymer rear fuel tank.
• High quality Brembo braking system.
• Technology-leading cornering ABS with Supermoto mode for hard braking under all circumstances and the Quickshifter+ for smooth clutchless shifting.
• Motorcycle Traction Control (MTC) with Sport and Street ride modes can be switched directly from the handlebars for controlled power delivery.
