In 2015 designers at AltRider put their heads together to come up with a series of concept bike builds. They formed a small and specialized team called “Adventure Design and Research”, also known as ADR. The purpose of this initiative is to think outside the box and to come up with very useful and unique designs to be used by Adventure Touring Motorcyclists. This is a segment of riders that is growing fast and much more diverse in both bikes owned, and requests for product.

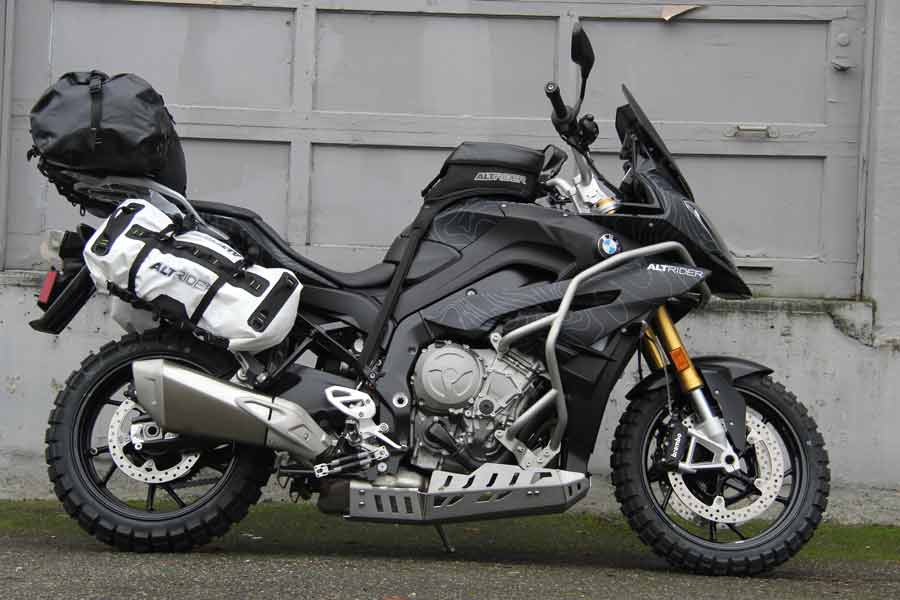

The first concept from ADR is AltRider’s very own take on the BMW S1000 XR. AltRider has transformed this bike by adding all of the necessary protective gear, luggage solutions, and of course some very knobby tires. The build was completed with a custom wrap pattern which looks like the topo maps used while riding off road. After completing the build and testing it, AltRider has decided to produce all of the unique parts designed for the build.

Crash Bars $699.00 - $748.97

AltRider crash bars are known for the center connector which ties the two bar halves together to distribute the load from a crash evenly to both sides of the bike rather than being directed to just one side. This approach dramatically increases the chances of surviving a crash with little to no damage.

With the S1000 XR, AltRider went a step further by adding a second crossover. Now there is one point low in front of the engine, and a second point high under the beak designed to transfer impact load. This is the only design on the market that can provide real protection in a crash or tip over.

Multiple connection points, wider coverage from top to bottom of the bike, and maximum load deflection allows AltRider’s bar design to fit closely to the frame of the bike. This keeps the bike’s profile narrow and prevents any loss of cornering clearance.

Powder-coated steel mounting brackets are utilized to connect the crash bars as well as AltRider’s skid plate, to create one solid protection package. A cross tube connects the brackets, which offers unparalleled strength and is the backbone to creating such a unique and complete system.

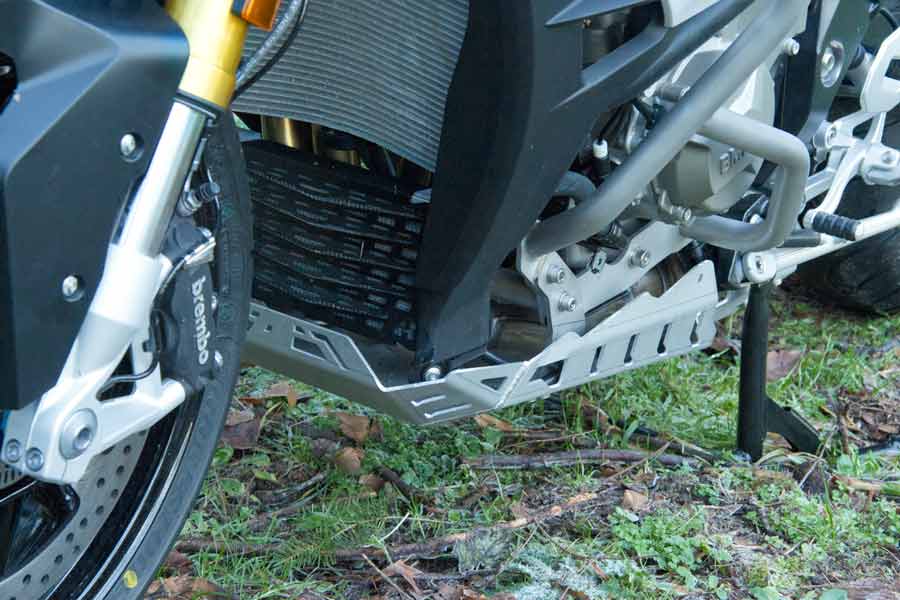

Skid Plate $356.00 - $405.97

The bottom of a motorcycle is the most susceptible to hits from curbs, rocks, debris, and nearly everything else and needs the most solid protection. Gain long term confidence for your BMW S1000 XR with an AltRider Skid Plate. The AltRider team has brought together a smart design leveraging knowledge from their long list of existing skid plates as well as addressing the challenges the XR presents in terms of its frame and low clearance. AltRider has added new and innovative features to bring forth their best skid plate yet.

Constructed of 3.175 mm (1/8”) lightweight aluminum, it provides the most coverage on the market without adding excessive weight to your bike. The slightly tapered and rib-cage-like design protects the engine vitals without interfering with a rider’s mobility or controls. Full coverage from front to back means the bike is protected against any debris kicked up by the front tire.

Whereas a solid skid plate would bottle in heat, the AltRider Skid Plate has strategically placed cut-outs to allow maximum air flow and heat dissipation without compromising protection.

Radiator Guard $129.97 and Oil Cooler Guard $109.97

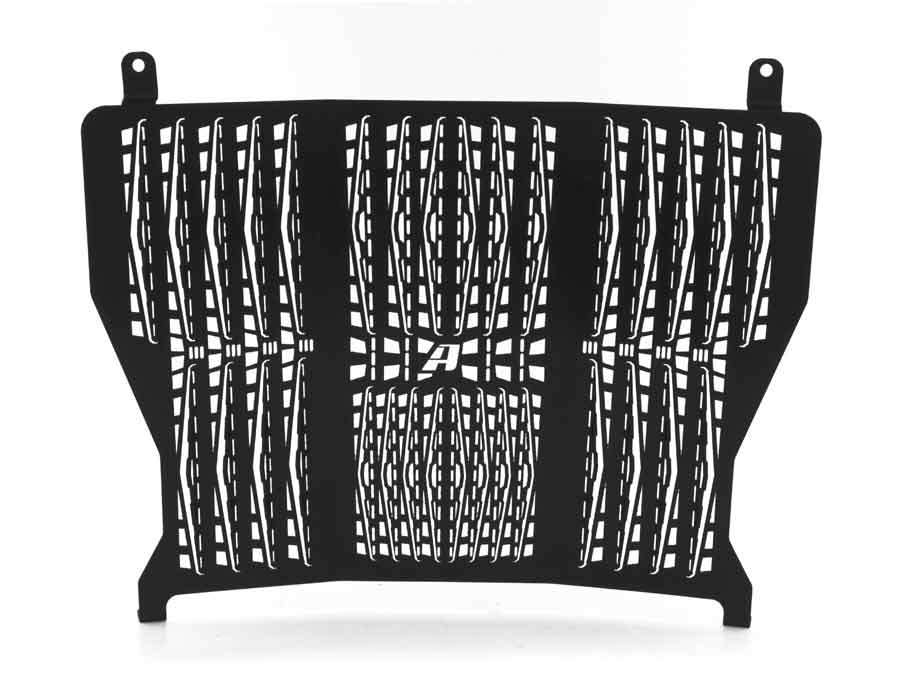

The radiator guard is made from 1/16” (1.6 mm) anodized aluminum, the robust, yet lightweight radiator guard prevents sticks and other dangers from puncturing the heart of the cooling system. Specially designed louvers deflect errant debris, while simultaneously directing airflow through the radiator to keep the bike cool. The louvers also provide additional rigidity to the entire piece.

The oil cooler guard is made of 1/16 inch anodized aluminum, it tucks neatly over the oil cooler and attaches with 3M high-temp VHB, rated to 300 degrees Fahrenheit. The guard’s subtly styled louvers were designed to protect and deflect debris, while encouraging maximum air flow to the oil cooler. The piece creates a seamless appearance that complements the matching AltRider Radiator Guard.

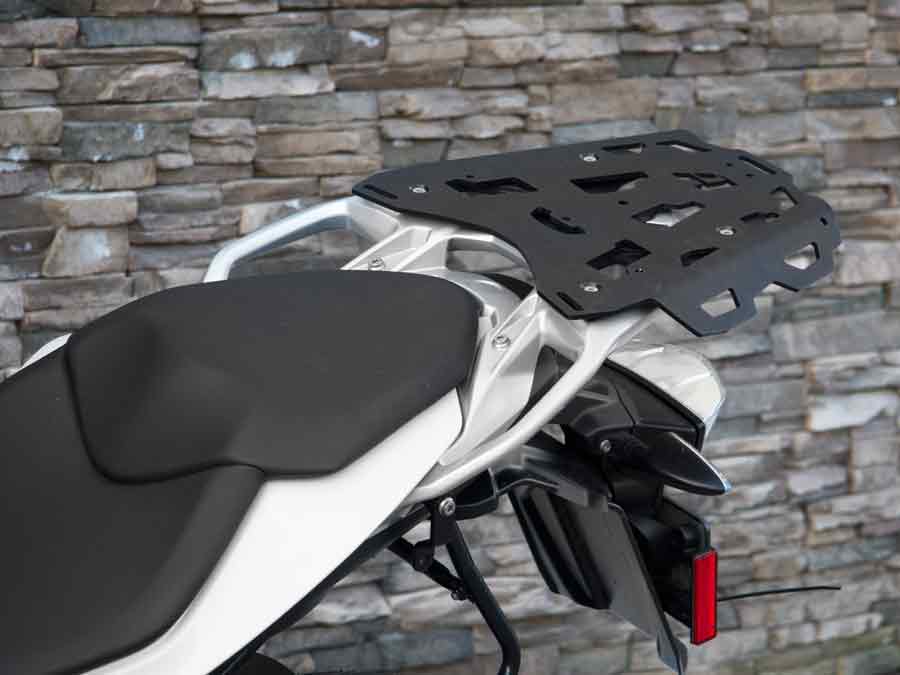

Luggage Rack $168.97

The AltRider XR luggage rack attaches directly to the OEM rack to provide a larger and more adaptable system. Easily attach gear with anything from straps to bungee cords to tie downs. The rack is uniquely designed with a variety of cut-outs so whether on or off road, you can take along everything you need for your trip. Made from sturdy 3/16 inch (4.75 mm) anodized aluminum and featuring side flanges for extra strength.

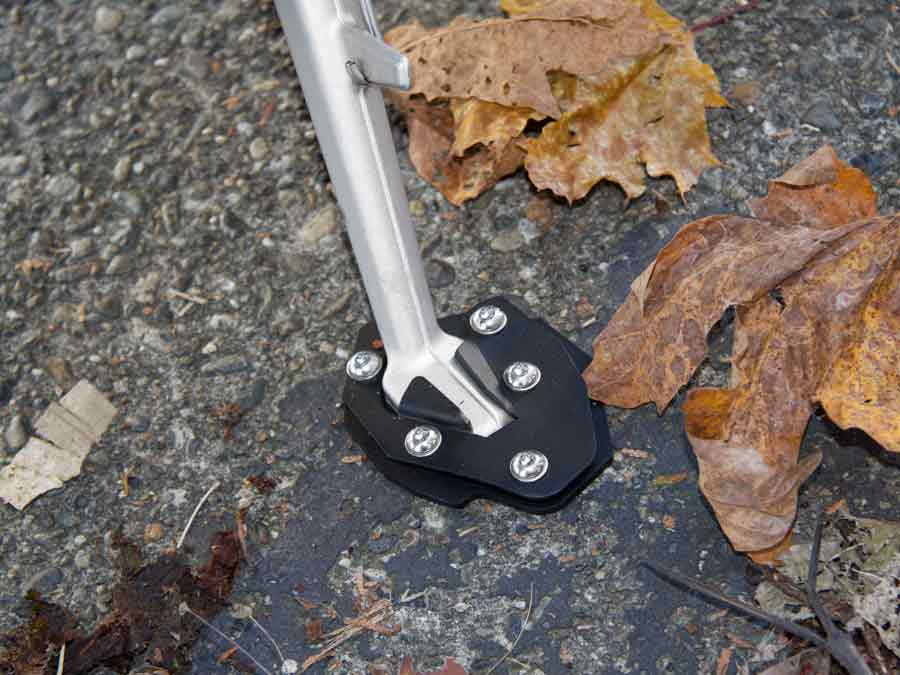

Side Stand Enlarger Foot $64.97

The last thing you want is to put your side stand down into soft ground and have your bike go down. The AltRider Side Stand Foot for the BMW S1000 XR provided a larger footprint to support the weight of your bike so you can dismount knowing your bike is going to stay upright. Made from hefty 1/8 inch (3.175 mm) thick stainless steel, the AltRider foot attaches using the flanged top plate that holds the curved foot, and Torx fasteners clamp it down for a tight fit.

Altriders development team has taken the stock BMW S1000 XR and transformed it into a bike that any adventurer would be albe to hop on and eat up some serious miles. By addressing the unique weaknesses from the factory their Adventure Design and Research team have built a bike that can actually be used beyond the tarmac without the constant worry of breaking something. Altrider.com
