With its reliable engine, comfortable geometry and affordable price, Kawasaki’s KLX250 series is one of the best and most affordable 250cc options around. Never leaving well enough alone, we set out to “ADVMotize” upgrade this already great bike into something with higher performance. In the process, we also made it more comfortable and usable for a wider range of riders and purposes. A KLX you could take to the store, on dirt trails, or around the world… and not have to be over six feet tall to ride.

Pro Taper SE ATV Bars

While we chose the KLX250SF over the “S” for its smaller wheels and one inch lower suspension, its shorter handlebars made standing awkward. We found the mid-rise Pro Taper SE ATV bar offers a good balance between cost, correct standing geometry, light weight and vibration reduction.

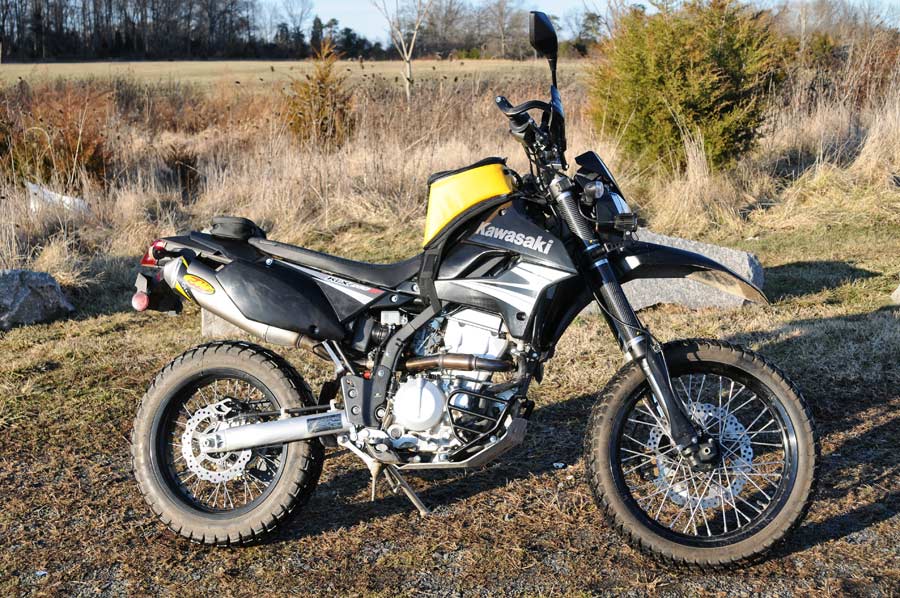

ADVMoto's KLX250SF with all added parts.

Although thick wall aluminum takes a little while to cut through with a hacksaw, once at the right length the taller bar could be installed with minimal re-routing of the stock cables. If you’d like it even higher, most 7/8- inch riser blocks will work; however, this will sacrifice the windscreen.

Twisted Throttle Denali D2 Lamps and Custom Piper Motorsport Light Mount

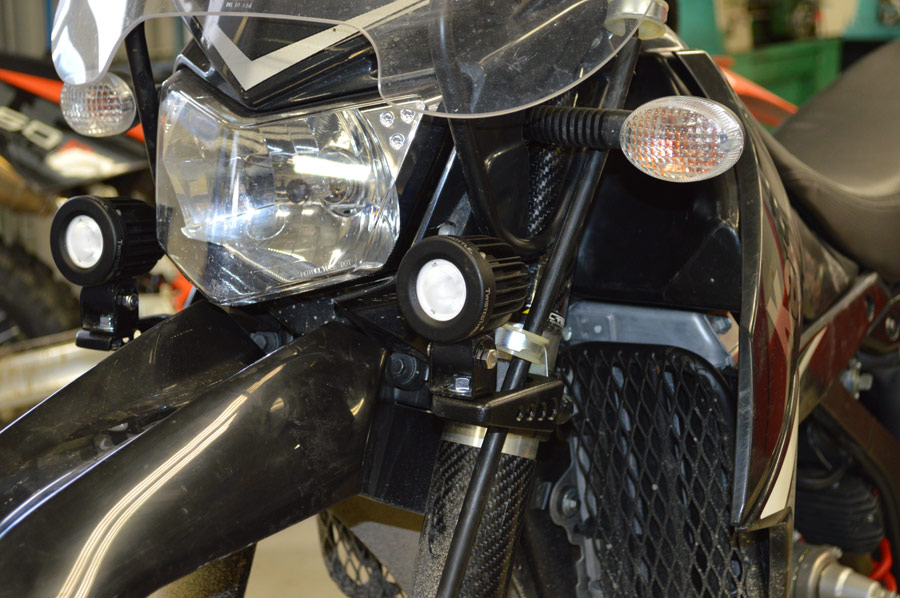

Front view showing Twisted Throttle's Denali D2 LampsYou can never have too much light on a bike, and smaller bikes are well known for inadequate Lumens for safe after-dark riding and visibility in daytime traffic. At the same time, adding giant auxiliary lights doesn’t make much sense as they can look out of proportion and are susceptible to damage when dropped or kissing a tree.

Small single LED lamps are the way to go on a project like this since they are both more compact and consume very little energy. Twisted Throttle’s Denali D2s fit like a glove on the KLX250, with 900 Lumens providing ample nighttime illumination and plenty of daytime visibility. The D2’s casings are well built and the wiring harness is one of the best around, if not a little too long.

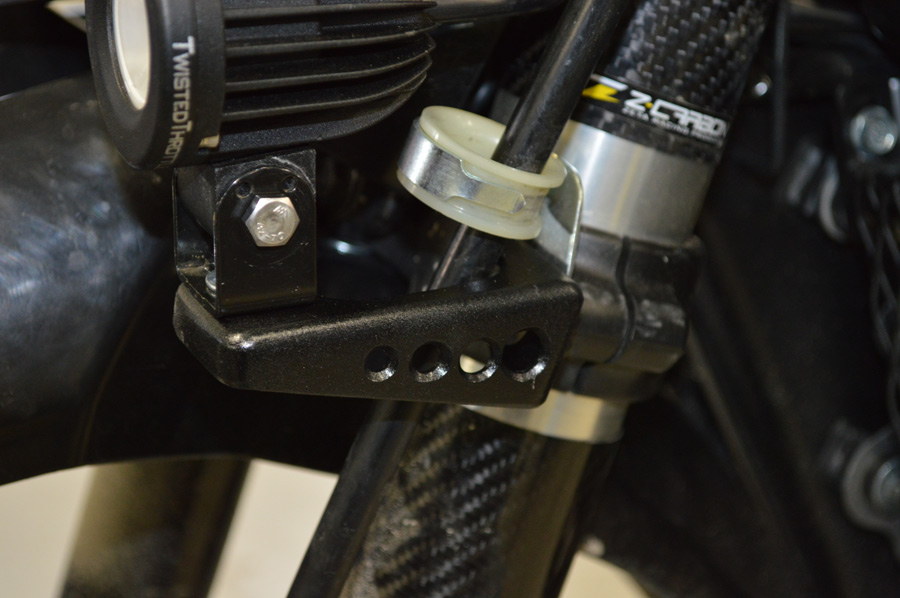

Piper Motorsport custom light mountsUnfortunately, the KLX250 lacks good auxiliary mounting spots. After much fiddling and head scratching, the lower triple tree hosts a few accessories like line guides and the round orange safety reflectors. The light had to be mounted in front of the fork tubes because full turns put the inside leg too close to the radiator and shroud.

This problem was easy to resolve thanks to Mitch Piper, at Piper Motorsport, who went the extra mile by creating a beautiful, strong and lightweight mount we wish was in regular production. The end result is a wonderfully sculpted, rock-hard light mount that protrudes about two inches from the fork tube and has the necessary cutout for the brake line running down the left leg.

Seat Concepts KLX250 Low Saddle

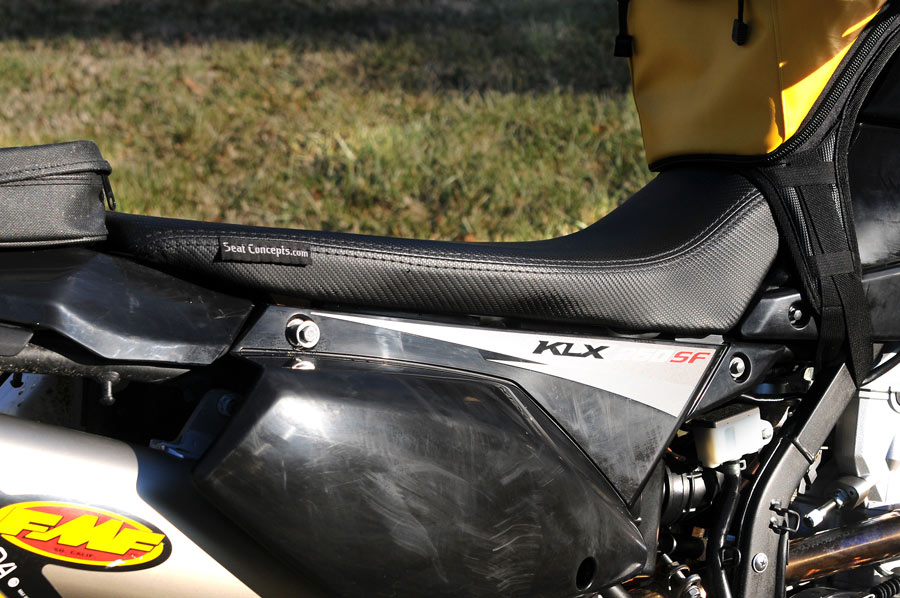

This Seat Concepts low saddle makes the bike friendly to the height-challenged riders.Proper seat height is by far one of the most important factors in building confidence off road, or as a new rider. There are various ways to achieve this but, for the heightchallenged, the simplest is to obtain a lower seat. Since this project revolves around the idea of making a dual-sport bike suitable for riders with inseams less than 30 inches, we went straight to the guys at Seat Concepts to try out their DIY saddle solutions. Seat Concepts offers both a regular height saddle (which sits slightly higher than stock) and a lower saddle, priced the same

The lower Seat Concepts saddle really pays off in standing height on a bike like the KLX. Although the resulting dip-like profile to the saddle looked like a potential sore spot, we were happy to find there was no issue with sliding forward. If you’re concerned about sliding on the seat, you can have the top panel replaced with a stickier “gripper” vinyl. Although quite a bit of foam was removed to lower the saddle height, the broadened seating area with denser foam made for a firm but forgiving saddle experience.
